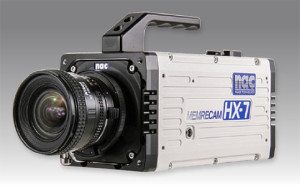

Memracam HX-7

The HX-7 offers an astounding 5 Mega Pixel resolution at up to 800 fps, full HD resolution at up to 2,000 fps, 1 Mega Pixel resolution at up to 3,600 fps, and so much more!

Unique Features of the HX-7 include:

  • CMOS Sensor: 2560 X 1920 Active Pixels
  • Bit Depth: Customer Selectable – 12/10/8 Bit
  • Electronic Shuttle OPEN to 1µsec
  • Versatile Recording: Burst, multi-trigger, restart-trigger and image trigger
  • A-EST Mode: High resolution timing and sync system to < 50 nanoseconds
  • Simultaneous Record and Download: Simultaneously record to one memory segment while downloading data from a second memory segment.
  • Enhanced Data Protection: Fast download to commercial off-the-shelf non-volatile HDD media, including USB 3.0 and Cfast (Compact Flash) media
  • Dual Segment Recording: Simultaneously record to two distinct memory segments at two different imaging speeds
  • Ruggedized for Range Use

Applications serviced by the Memrecam HX-7:

  • Explosives and Pyrotechnics
  • Ballistics
  • Missile Launch
  • Projectile Tracking
  • Component Tracking
  • Materials Testing
  • Fluid and Flow Visualization (PIV)
